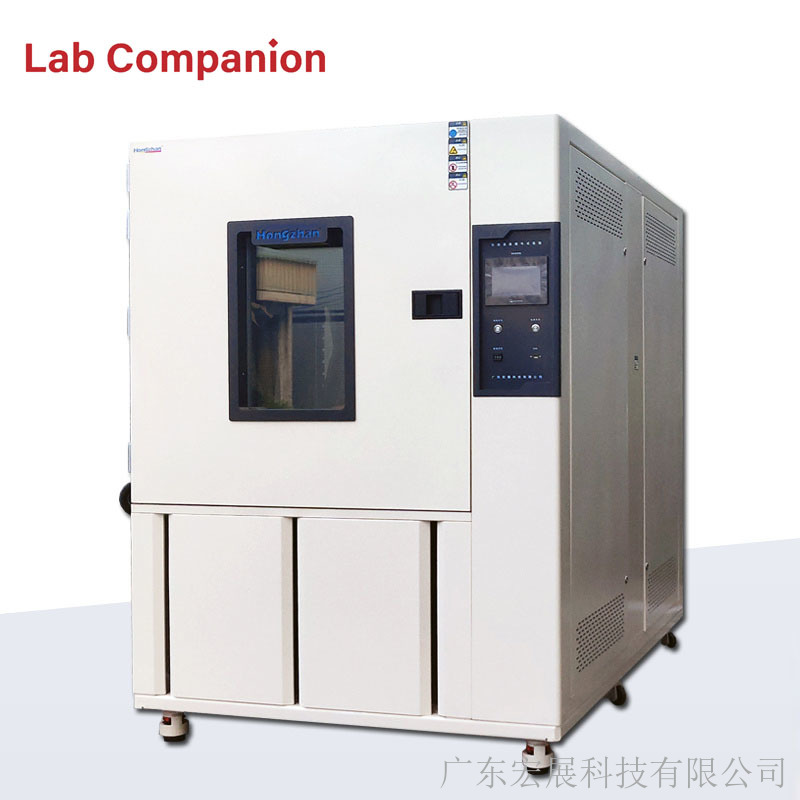

I. Core Principle 1: Familiarize Yourself with Sample Performance to Avoid Test Risks
Before conducting tests with the Lab Companion High-Low Temperature Rapid Temperature Change Chamber, the primary task is to fully familiarize yourself with the basic performance of the samples. This is the fundamental prerequisite for ensuring test safety and avoiding sample damage and equipment failures. The Lab Companion High-Low Temperature Rapid Temperature Change Chamber is compatible with various types of samples, but different samples have significant differences in heat resistance, cold resistance, and heat generation characteristics. It is necessary to clarify key parameters of the samples in advance, such as material, size, heat generation power, and test tolerance range, to eliminate various risks caused by mismatches between sample characteristics and equipment operating parameters.
For example, when testing heat-generating samples such as new energy batteries, it is necessary to clarify their maximum heat generation power, ensure that the sample volume does not exceed 10% of the effective space of the equipment, and turn on the equipment's overheating protection function in advance to prevent overheating hazards. When testing fragile composite material samples, it is necessary to rely on the advantage of adjustable temperature change rate of the Lab Companion equipment, reasonably set the temperature change rate to 0.1~5℃/min, avoid sample cracking and damage caused by sudden temperature changes, and ensure the smooth progress of the test.
II. Core Principle 2: Clarify Test Conditions and Standardize Parameter Settings
Clarifying test conditions and standardizing equipment parameter settings are the core keys to ensuring the accuracy and reliability of test data. The Lab Companion High-Low Temperature Rapid Temperature Change Chamber is equipped with an industrial-grade PLC control system and a 7-inch color touch screen, which can realize fully intelligent parameter control. However, during operation, it is necessary to strictly follow the test standards and sample requirements to avoid the impact of improper parameter settings on the accuracy of test results.
First, it is necessary to clarify core parameters such as temperature range, temperature change rate, and heat preservation time in accordance with relevant test standards (such as GB/T2423, GJB150, etc.). For example, military product testing requires a wide temperature range of -70℃~150℃, and electronic component testing can adopt a temperature change rate of 5℃/min.
Second, it is necessary to accurately set safety parameters, including over-temperature protection threshold, overload protection current, water shortage alarm threshold, etc., to ensure that the equipment always operates within a safe and controllable range.
Finally, it is necessary to reasonably edit the preset test program according to the test process. The Lab Companion equipment can store 100 programs, each supporting 30 segments of temperature change curves, to avoid test interruption caused by program confusion and improve test efficiency.
III. Core Principle 3: Master Equipment Technology and Standardize Operation Procedures
Proficiency in the technical characteristics and operation procedures of the Lab Companion High-Low Temperature Rapid Temperature Change Chamber is the key to improving test efficiency and extending equipment service life. Operators need to be familiar with the equipment's structure, core functions, and operation specifications in advance to eliminate equipment failures or safety hazards caused by incorrect operations.
Before starting the machine, it is necessary to comprehensively check whether various indicators such as equipment power supply, refrigerant, refrigerating oil, and water level are normal, and confirm that the sample placement complies with the specifications (100~150mm away from the box wall) to avoid affecting the temperature uniformity inside the box. After starting the machine, first start the equipment's preheating or precooling program, and put the sample into the box only after the temperature inside the box reaches the set initial temperature to prevent the sample from being damaged by sudden cold and heat. During the test, it is necessary to observe the equipment operation status and sample changes in real time, and it is strictly prohibited to open the box door at will. If it is necessary to open it, it is necessary to first pause the heating and humidification functions, and then operate after the temperature inside the box tends to room temperature. After the test, first close the test program, take out the sample after the equipment naturally returns to room temperature, then turn off the equipment power supply, clean up the debris inside the box, and complete the equipment operation record for subsequent traceability and maintenance.
IV. Common Operation Mistakes and Avoidance Methods
Combined with the actual application scenarios of the Lab Companion High-Low Temperature Rapid Temperature Change Chamber, most equipment failures and test errors are caused by operation mistakes, which need to be focused on avoiding and standardized correction:
Mistake 1: Ignoring the heat generation characteristics of the sample and blindly setting operating parameters, leading to equipment overload and sample damage. Avoidance method: Detect the heat generation power of the sample in advance, reasonably match the equipment volume and temperature change rate, and ensure that the parameters are compatible with the sample characteristics.
Mistake 2: Opening the box door at will during the test, leading to drastic fluctuations in the temperature inside the box and affecting test accuracy. Avoidance method: Strictly follow the operation procedures, do not open the box door unless necessary, and if it is necessary to open it, first pause the relevant functions and operate after the temperature stabilizes.
Mistake 3: Directly turning off the equipment power supply after the test without completing the temperature recovery and cleaning process, damaging equipment components. Avoidance method: Strictly follow the process of "closing the program → natural temperature recovery → taking out the sample → cleaning the equipment → turning off the power supply" to do a good job in subsequent equipment maintenance.
In addition, Lab Companion can provide professional operation training services to help operators quickly master equipment use skills, fully avoid various operation mistakes, and ensure that the test work is carried out efficiently, safely and orderly.

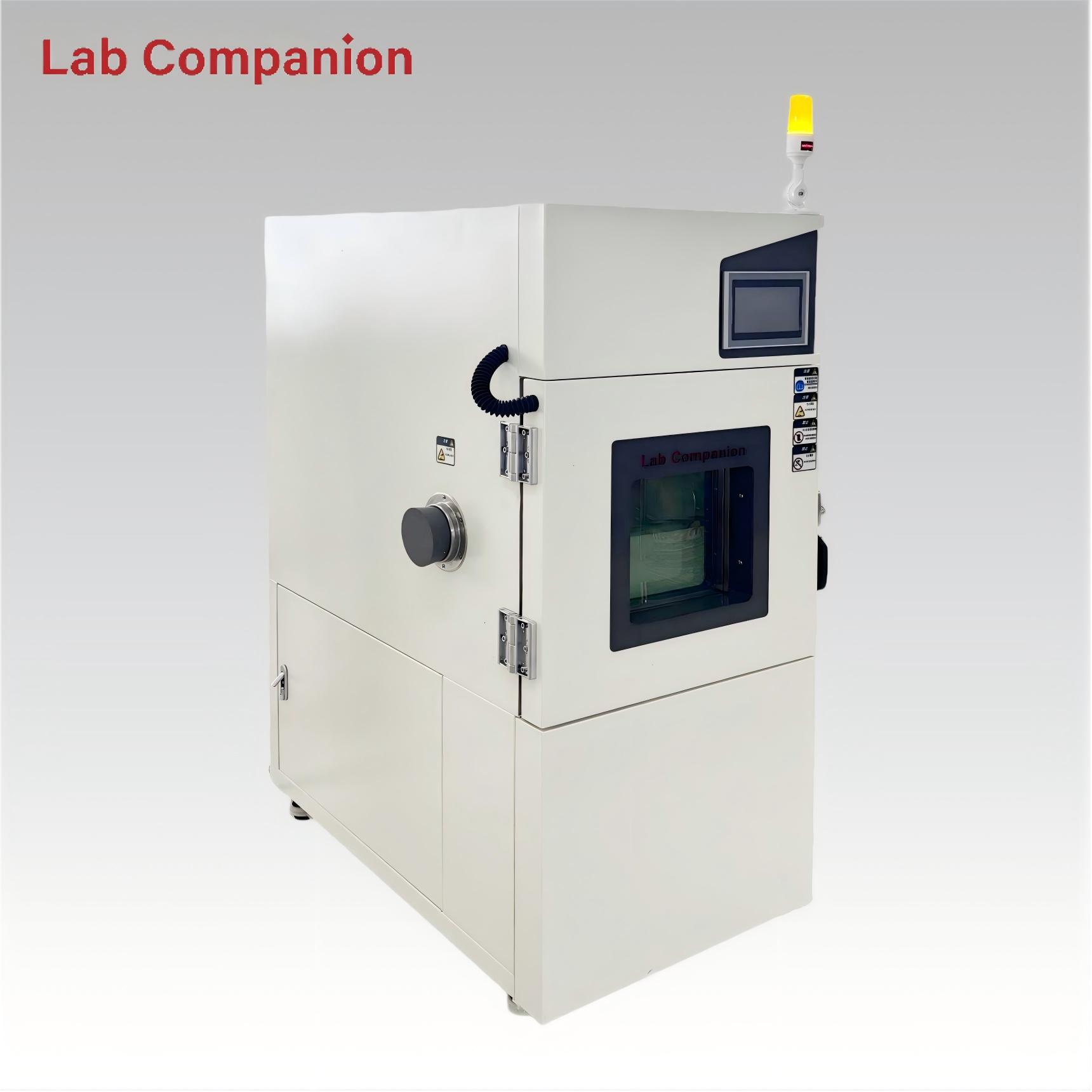

I. Core Function of Refrigerant Oil: Ensuring Long-term Stable Operation of the Compressor
As the "heart" of the refrigeration system of the high and low temperature rapid temperature change chamber, the compressor's operating status directly determines the overall performance of the equipment. Refrigerant oil is the key medium to maintain the normal operation of the compressor, mainly undertaking four core functions: lubrication, cooling, sealing, and cleaning. Specifically, refrigerant oil can effectively reduce the friction loss of moving parts inside the compressor, lower the operating temperature during operation, seal the refrigerant leakage channel, and clean internal carbon deposits and impurities, thereby fundamentally extending the service life of the compressor. Lab Companion high and low temperature rapid temperature change chambers are equipped with high-quality semi-hermetic piston compressors, matched with specially adapted refrigerant oil. The purity of the oil and the matching degree of its performance parameters with the equipment directly affect the operating efficiency, energy consumption level and overall service life of the refrigeration system. Therefore, strictly following the refrigerant oil replacement specifications and controlling the replacement cycle is a core link in the daily maintenance of the equipment and a key measure to avoid refrigeration system failures.
II. Lab Companion Refrigerant Oil Replacement Specifications: Detailed Cycle Standards and Operation Steps
Combined with industry standards and the structural characteristics of Lab Companion equipment, clear cycle standards and operation specifications have been formulated for the replacement of refrigerant oil in semi-hermetic piston compressors to ensure that the replacement process is scientific and standardized, and the equipment performance is not affected.
(I) Replacement Cycle
1. First Replacement: The first refrigerant oil replacement must be completed within 500 hours of equipment operation. The purpose is to remove metal debris and impurities generated during the factory inspection and initial operation of the equipment to avoid wear of internal parts of the compressor;
2. Routine Replacement: After the first replacement, the subsequent replacement cycle should be flexibly adjusted according to the oil quality and actual operating conditions. Under normal operating conditions, it should be replaced every 10,000 to 12,000 hours;
3. Emergency Replacement: If abnormal oil quality (such as discoloration, impurities, peculiar smell, etc.) is found during daily inspection, there is no need to wait for the fixed cycle. The equipment must be shut down immediately for inspection and refrigerant oil replacement to avoid the expansion of faults.
(II) Replacement Operation Steps
Lab Companion provides users with a standardized operation guide with clear and operable steps, as follows:
1. Preprocessing: Start the equipment and run it until the refrigeration system reaches the normal working temperature, and continue to run for 1 hour to ensure that the refrigerant oil circulates fully, facilitating the discharge of internal impurities;
2. First Oil Drainage: Turn off the equipment power supply. After the system pressure drops to the normal range, drain all the old oil in the oil tank, cooler and all filters to ensure no residual old oil;
3. Secondary Flushing: Add new refrigerant oil to the oil tank to the minimum oil volume required for equipment operation (about 1/2 of the oil tank volume), start the machine and run it to the normal working temperature for 1 hour, then shut down and drain the flushing oil in the oil tank again;
4. Tertiary Flushing and Cleaning: Repeat the above secondary flushing steps. After completing the third oil drainage, thoroughly clean the filters and filter screens to remove residual impurities and old oil traces;
5. Adding New Oil: Add Lab Companion specially adapted refrigerant oil to the oil tank until it reaches the normal oil level specified by the equipment, ensuring sufficient oil volume and no leakage;
6. Test Run: Restart the equipment and run it for 15 minutes. Closely observe whether the oil level is normal, whether there is abnormal noise during equipment operation, and whether the refrigeration system is stable. Only after confirming that there is no abnormality can it be put into normal use.
III. Oil Quality Judgment Skills: Timely Avoid Equipment Operation Hidden Dangers
In addition to strictly following the fixed replacement cycle, the oil quality status can be quickly judged by observing the oil quality, color and smell of the refrigerant oil during daily operation and maintenance, so as to avoid compressor damage and refrigeration system failures caused by oil deterioration in advance. The specific judgment standards are as follows:
1. Normal State: The refrigerant oil is transparent and clear, with no visible impurities or peculiar smell, indicating that the oil quality is good and can continue to be used normally;
2. Mild Abnormality (Yellow Oil Color): If the oil color turns light yellow or yellow, carefully observe whether there are impurities or burning smell, and check whether air enters the refrigeration system causing oil oxidation; if no moisture or impurities are detected, it can be temporarily not replaced, but the inspection cycle should be shortened; if the oil color is dark and accompanied by slight impurities, the new oil should be replaced in time, and the system should be simply cleaned;
3. Severe Abnormality (Brown Oil Color): If the oil color turns dark brown or black brown and is accompanied by obvious burning smell, stop the machine immediately and detect the resistance value of the compressor motor winding; if the winding insulation is good, the refrigerant oil must be completely replaced and the refrigeration system must be fully cleaned; if the winding insulation is abnormal, contact after-sales service to check the compressor failure to avoid further damage to the equipment.
IV. Lab Companion After-sales Support: Full-cycle Escort to Reduce Maintenance Costs
To help users complete the refrigerant oil replacement standardizedly and avoid operational risks, Lab Companion provides full-cycle after-sales support services to comprehensively reduce users' maintenance costs and extend the service life of the equipment.
1. Standardized Guidance: Provide users with a detailed refrigerant oil replacement operation manual and video guidance to ensure that users can quickly grasp the operation points;
2. Professional Guidance Service: Equipped with a professional after-sales team. On-site maintenance services are available in China to guide the refrigerant oil replacement steps and explain oil quality judgment skills on site to solve users' operational problems; On-site services are not provided overseas, but one-on-one online guidance services are available to answer various questions during the operation process and ensure the standardized completion of the replacement work;
3. Specially Adapted Consumables: Provide Lab Companion equipment specially adapted refrigerant oil to ensure that the oil quality and performance are fully matched with the equipment, and eliminate equipment failures caused by the use of inferior refrigerant oil or non-adapted refrigerant oil;
4. Full-cycle Operation and Maintenance Support: Regularly remind users to replace refrigerant oil, provide equipment maintenance suggestions, help users reduce compressor wear, improve refrigeration efficiency, reduce energy consumption, and keep the equipment in a stable operating state for a long time, providing reliable support for various testing work.
Today, new energy vehicles traverse frigid polar plateaus and scorching deserts, telecommunication base stations stand resilient in remote highlands enduring relentless daily temperature swings year-round, and aerospace vehicles break through the atmosphere to face the extreme temperature fluctuations of outer space. Inside these high-end pieces of equipment lie tens of thousands of electronic components, precision structural parts, and core assemblies, which are exposed not to static high or low temperatures alone, but to continuous, rapid, and repetitive dynamic thermal stress. This invisible stress is the primary hidden culprit behind material fatigue, solder joint failure, component performance degradation, and sudden product malfunctions — and the critical risk factor that determines the service life and operational safety of high-end manufactured products.
Rapid temperature change testing serves as the core process to simulate these real-world extreme dynamic environments, accelerate the exposure of potential product defects, and validate long-term product reliability; it is also an indispensable link in the R&D and quality control systems of high-end manufacturing. However, as "Made in China" advances toward high-end, precision, and global markets, downstream industries impose extremely stringent requirements for product reliability. Countless enterprises find themselves trapped in a common industry dilemma in environmental testing — the inability to balance efficiency, cost, and precision — creating a major bottleneck restricting R&D iteration, production delivery, and quality upgrading.
I. Common Industry Dilemma: The "Impossible Triangle" of Reliability Testing
A deep dive into frontline R&D and quality control reveals that the shortcomings of traditional environmental testing equipment are severely misaligned with the fast-paced development of high-end manufacturing. Three core pain points overlap to form an unbreakable cycle of challenges:
1. Testing Efficiency Bottlenecks: Slowing R&D Iteration and Restricting Delivery Cycles
In today’s high-end manufacturing sector, product iteration cycles have been compressed to months or even weeks, and the pace of R&D validation directly dictates market competitiveness. Yet traditional rapid temperature change equipment suffers from slow temperature transition rates and lagging temperature control response, often taking more than ten hours to complete a full temperature cycle. Leading domestic new energy battery manufacturers have reported that for automakers’ strict low-temperature charging reliability tests, traditional equipment takes over 8 hours just to cool test samples from room temperature to -40°C. Such lengthy single-cycle testing drastically delays R&D validation and directly impacts order delivery timelines, causing companies to miss critical market opportunities.
2. Energy Consumption and Cost Pressures: Unsustainable Operating Costs Amid Carbon Neutrality Goals
Rapid temperature change chambers are inherently high-energy-consumption devices in laboratory settings. Traditional models generally adopt an extensive temperature control mode of "simultaneous cooling and heating," with crude control logic and extremely high wasted energy — field measurements show energy waste rates as high as 40%. Under the dual pressures of China’s "Dual Carbon" strategic goals and enterprises’ refined operational management, persistently high electricity costs have become an unbearable burden for quality control departments, and run counter to industry trends of green and low-carbon manufacturing.
3. Complex Scenario Adaptation Challenges: Standard Models Fail to Meet Diverse Testing Needs
Testing requirements vary drastically across products: from fingernail-sized semiconductor chips and precision sensors to large new energy battery packs, complete automotive components, and aerospace core parts, each demands unique testing standards, environmental parameters, and load specifications. Testing is also governed by strict global and industry standards, including JEDEC for semiconductors, ISO international standards, GB national standards, and GJB military standards. Conventional standard models on the market rarely fit diverse testing scenarios perfectly, while traditional custom solutions face long lead times, high costs, uncontrollable technical risks, and frequent resource waste from over-customization, leaving enterprises in a difficult bind.
II. The Solution: 21 Years of Practical Experience Forging the Core Philosophy of "Precision, Reliability, and Efficient Collaboration"
Against these widespread industry pain points, simple equipment parameter upgrades or partial component optimizations cannot solve root problems. The real breakthrough stems from a profound insight into the essence of reliability testing: it is far more than environmental simulation — it is a precise prediction of a product’s performance over its entire lifecycle, and a core barrier safeguarding the quality baseline of high-end manufacturing.
As an industry pioneer with 21 years of deep expertise in environmental testing equipment, Lab Companion leverages hands-on experience serving over 10,000 leading enterprises and top research institutions — including Huawei, BYD, and the Chinese Academy of Sciences. Through tens of thousands of scenario tests and continuous technological iterations, we have broken away from the limitations of traditional equipment manufacturing and proposed a trinity core philosophy of "Precision, Reliability, and Efficient Collaboration," shattering the "Impossible Triangle" of reliability testing and delivering full-spectrum testing solutions for high-end manufacturing.
The core logic of this philosophy is clear and unwavering: achieve ultimate temperature control precision to establish absolute authority for test data, eliminating data deviations and repeated testing; deliver military-grade quality and operational reliability to ensure uninterrupted 24/7 stable testing, adapting to high-intensity mass production validation; and implement systematic efficient collaboration to integrate equipment performance optimization, intelligent energy management, and full-scenario custom adaptation. In turn, this helps enterprises solidify their product quality foundation, drastically reduce full-lifecycle testing costs, and enhance core competitiveness.
III. Technical Foundation: Translating Philosophy into Quantifiable Engineering Practice
Lab Companion’s rapid temperature change chambers are the engineering embodiment of this core philosophy. Their value lies not in empty parameter stacking, but in directly targeting industry pain points and converting technical advantages into tangible benefits for enterprises, achieving perfect alignment between technology and practical demand:
1. Breaking Efficiency Bottlenecks: Wide-Range Adjustable Temperature Rates for Drastically Reduced Testing Cycles
To address the slow temperature transition speed of traditional equipment, Lab Companion integrates a self-developed high-efficiency binary cascade refrigeration system with optimized full-circulation air duct design, enabling linearly adjustable temperature transition rates from 5°C/min to 25°C/min for flexible adaptation to different product characteristics. For automotive components, new energy batteries, and other applications requiring rapid stress screening, a 20°C/min high-speed mode cuts total testing cycles by over 60%. For delicate precision devices like semiconductor chips and sensors, a lower gentle rate ensures non-destructive testing while maintaining validation effectiveness, balancing efficiency and product safety.
2. Alleviating Cost Pressures: Intelligent Energy-Saving Technology Cutting Energy Consumption by 25%-30%
Abandoning the extensive temperature control mode of traditional models, Lab Companion’s rapid temperature change chambers innovatively combine variable frequency compressor technology, AI intelligent fuzzy algorithm, and patented cold-balance energy-saving technology. The equipment dynamically adjusts cooling and heating power output in real time based on actual sample load, temperature control stage, and ambient temperature, completely eliminating wasted energy and resource consumption. Third-party authoritative testing confirms that the comprehensive energy consumption of this series is 25%-30% lower than traditional models of the same specification. A single unit saves tens of thousands of yuan in electricity costs annually, aligning with carbon neutrality goals while turning testing expenses into a green competitive advantage for enterprises — a win-win for quality and efficiency.
3. Mastering Complex Scenarios: Full-Dimension Customization with Precise Solutions Delivered in 60 Days
Backed by 21 years of technical accumulation and a strong custom R&D team, Lab Companion breaks the constraints of standard models to offer fully flexible parameter customization: temperature ranges extend as low as -100°C and as high as +250°C, covering all scenarios from extreme cold to ultra-high temperatures; chamber volumes range from dozens of liters for benchtop models to tens of thousands of liters for walk-in chambers, fully adapting to samples of all sizes from microchips to complete assemblies. Whether optimizing for 60kW high-heat load AI servers, integrating nitrogen purge interfaces for semiconductor testing, or adapting to special military and aerospace component standards, Lab Companion deeply dissects customer testing logic and core needs, delivering precise custom solutions within 60 days. We strictly avoid resource waste from over-customization and redundant demands, ensuring every unit is tailored to real-world application scenarios.
IV. Practical Validation: Accelerating New Energy Battery Testing with Tangible Results
A well-known domestic battery module manufacturer was long plagued by traditional testing equipment. During -40°C low-temperature charging reliability testing, the cooling process alone took over 8 hours, with a temperature control fluctuation of ±1°C. This led to large data deviations, poor test repeatability, and frequent retesting, resulting in extremely low daily testing efficiency. Worse, test reports failed to pass downstream automakers’ reviews on the first try, causing repeated order delivery delays and placing the company under immense delivery and reputational pressure.
After adopting Lab Companion’s custom rapid temperature change chamber, the manufacturer’s testing process underwent a complete transformation: the equipment operated stably at a 20°C/min load temperature rate, reducing -40°C cooling time to just 3.2 hours and doubling testing efficiency. With an ultra-high temperature control accuracy of ±0.1°C and minimal temperature fluctuation of ≤±0.5°C, data deviations were completely eliminated, delivering highly consistent and authoritative test results. A custom fixture designed exclusively for battery modules also eliminated interference from sample movement during testing, ensuring full testing stability.
Post-implementation, the manufacturer’s daily testing capacity doubled, test reports passed automakers’ strict reviews on the first attempt, and overall order delivery cycles were shortened by 40%, fully resolving delivery bottlenecks. This practical success is not only a powerful testament to Lab Companion’s rapid temperature change chamber technology, but also a vivid demonstration of the "Precision, Reliability, and Efficient Collaboration" philosophy perfectly implemented in high-end manufacturing scenarios.
V. Beyond Equipment: From Equipment Supplier to Full-Spectrum Reliability Empowerment Partner
Lab Companion firmly believes that a high-performance piece of equipment is only the starting point of service. True core value lies in building a full-cycle, full-spectrum service ecosystem around the equipment to resolve all customer concerns:
For service response: We have established 16 local service centers nationwide, building an efficient service network with "2-hour emergency response in the Pearl River Delta core region and 3-day on-site service nationwide." We respond 24/7 to equipment commissioning, maintenance, and troubleshooting requests, eliminating production losses from equipment downtime.
For standard compliance: We offer one-stop adaptation to all major global testing standards, including ISO, GB, GJB, and JEDEC, helping customers smoothly clear certification barriers for domestic and international markets and supporting global product layout.
For professional consulting: Leveraging 21 years of industry expertise, we provide customized test profile optimization and testing plan consulting services, optimizing testing processes and improving validation efficiency from the source, and helping customers build more robust quality control systems.
Conclusion: Measuring Reliability with Time, Foreseeing the Future through Collaboration
In the current era of high-quality manufacturing development, product reliability has evolved from a basic "passing threshold" to a core "competitive benchmark." It directly impacts brand reputation and market position, and is critical to the security of the high-end manufacturing supply chain and industrial chain.
As a "guardian of quality testing" that has grown alongside China’s high-end manufacturing for 21 years, Lab Companion remains rooted in technical accumulation and customer-centric innovation, unwaveringly practicing the core philosophy of "Precision, Reliability, and Efficient Collaboration." We have broken the limitations of traditional testing equipment, elevating rapid temperature change chambers from standalone industrial tools to trusted intelligent partners in enterprises’ R&D and quality control systems.
Moving forward, Lab Companion will stay committed to its technical heritage, empowering every cutting-edge innovation with 21 years of dedicated expertise, and helping Made in China break through quality bottlenecks. We aim to make every extreme temperature transition precise, stable, and controllable, driving China’s high-end manufacturing toward a broader global future.
Temperature cycling testing stands as a critical step in product reliability verification and quality control across R&D processes, serving as a mandatory checkpoint for new product launches in electronics, new energy, aerospace and other high-demand industries. However, most enterprises worldwide struggle with three persistent pain points that hinder cost reduction, efficiency improvement and market expansion:overly long test cycles delaying R&D progress, inaccurate test data undermining decision-making, and excessive energy consumption driving up operational expenses.
With 21 years of deep expertise in environmental test equipment, Lab Companion thoroughly understands the core challenges faced by global R&D teams. Leveraging proven technical accumulation and innovative engineering, we have developed high-performance rapid temperature change chambers that target and eliminate these industry bottlenecks. Our solutions deliver doubled testing efficiency, significant cost savings, and full-cycle support for enterprises to accelerate R&D, enhance product quality and seize market opportunities.
Targeted Solutions to 3 Critical Industry Pain Points
Pain Point 1: Lengthy Test Cycles Halt New Product Launches
Conventional temperature cycling equipment suffers from low performance, with a temperature change rate of only 3-5℃/min. Completing a standard -40℃ to 85℃ cycling test often takes 48 hours or more, dragging out R&D schedules, delaying time-to-market, and putting enterprises at a competitive disadvantage.
Lab Companion Solution: Ultra-Fast Temperature Cycling to Cut Test Cycles by 50%
Lab Companion Rapid Temperature Change Chambers abandon the inefficiencies of traditional models, equipped with self-developed high-efficiency temperature control systems and optimized air duct designs. The airflow circulation rate reaches up to 50 cycles per minute, enabling a dramatic boost in temperature change speed. Our standard TC series delivers a load temperature change rate of 10℃/min, while high-end custom models achieve an ultra-fast 20℃/min rate. This allows rapid simulation of temperature stress changes under extreme environmental conditions, completing reliability testing efficiently and reliably.
Proven Performance: A leading global smartphone manufacturer adopted Lab Companion Rapid Temperature Change Chambers for -40℃ to 85℃ cycling tests at 10℃/min, cutting the traditional 48-hour test cycle down to just 24 hours. This reduced overall new product R&D time by 50%, speeding up product iteration and market launch significantly.
Pain Point 2: Inaccurate Test Data Compromise Quality Control
The accuracy of temperature cycling test data directly guides product optimization and determines final reliability. Traditional equipment suffers from poor temperature control precision and uneven temperature fields, frequently causing temperature overshoot, large data deviations and invalid test results. Such unreliable data fails to support effective R&D improvements, even leading to potential product quality risks and increased trial-and-error costs.
Lab Companion Solution: High-Precision Temperature Control for Trustworthy Test Data
Lab Companion Rapid Temperature Change Chambers are integrated with a self-developed dual PID closed-loop control system and water vapor partial pressure control system, paired with high-precision PT100 platinum resistance sensors (±0.1℃ accuracy). This achieves ultra-precise temperature control: temperature fluctuation controlled within ±0.1~±0.5℃, temperature deviation ≤±0.5℃, and temperature uniformity ≤±2℃. All parameters fully comply with international and domestic authoritative standards including IEC and GB/T, meeting global testing compliance requirements.
Additionally, the chambers feature an intelligent temperature compensation function that automatically adjusts the temperature change rate based on sample load size. This completely eliminates data deviations caused by load variations, ensuring every set of test data is accurate, traceable and credible, providing solid data support for product R&D optimization and quality upgrades.
Pain Point 3: Excessive Energy Consumption Raises Operational Costs
Temperature cycling test equipment is typically high energy-consuming, and traditional models operate on an inefficient "simultaneous cooling and heating" mode, resulting in massive energy waste. Long-term operation generates huge electricity expenses, increasing enterprise operational burdens and squeezing profit margins.
Lab Companion Solution: Full-Link Energy-Saving Design to Save Nearly 10,000 kWh Annually
Catering to global enterprises’ demand for cost reduction, Lab Companion has implemented comprehensive energy-saving optimizations for our rapid temperature change chambers. Equipped with inverter energy-saving compressors, thickened high-density insulation layers, and energy-efficient cooling output temperature and humidity control systems, we upgrade core components and operating logic in full. Compared with traditional equipment of the same specification, our chambers reduce power consumption by 20%-30%; models upgraded with water-cooled heat dissipation can achieve an additional 30% energy savings.
Based on calculations of 8 hours of daily operation per unit and an industrial electricity rate of $0.15/kWh (or equivalent local tariff), Lab Companion Rapid Temperature Change Chambers save enterprises nearly $1,500 on annual electricity costs per unit. Long-term use delivers substantial operational cost savings, perfectly aligning with enterprises’ core goals of cost reduction and efficiency improvement.
Extra Core Advantages: Reduce R&D Team Workloads & Boost Efficiency Further
Beyond resolving the three core R&D pain points, Lab Companion Rapid Temperature Change Chambers combine exceptional stability and user-friendliness to reduce workloads for engineers and R&D teams, elevating overall testing efficiency:
• Ultra-Stable Operation, Minimize Downtime: We select high-quality imported compressors from world-renowned brands such as Tecumseh (France) and Copeland (USA), paired with refined structural design. Select models support 17,520 hours (approximately 2 years) of uninterrupted operation, greatly reducing downtime for maintenance and debugging, and ensuring continuous, smooth testing processes.
• User-Friendly Operation, Lower Learning Barriers: Equipped with a 7-inch high-definition true-color touch screen with an intuitive interface, the chambers support storage and one-click recall of over 200 preset test programs. Scene parameters can be switched quickly within 45 seconds without complex debugging, effectively easing engineers’ workloads and improving practical testing efficiency.
Lab Companion: Your Trusted Partner for R&D Efficiency & Cost Control
With 21 years of industry dedication, Lab Companion always puts global customer needs first, breaking through industry bottlenecks with technological innovation. Our rapid temperature change chambers excel in three core dimensions: doubled test efficiency, reliable and accurate data, and sharp cuts to energy and operational costs, while boasting durable stability and easy operation.
They are perfectly suited for testing demands across electronics, new energy, aerospace, hardware, plastics and other industries. Choosing Lab Companion Rapid Temperature Change Chambers means investing in a high-performance testing solution that acts as a "speed booster" for R&D and a "cost throttle" for operations. We help enterprises build a solid line of defense for product reliability, enhance core market competitiveness, and gain a leading edge in global market competition.
